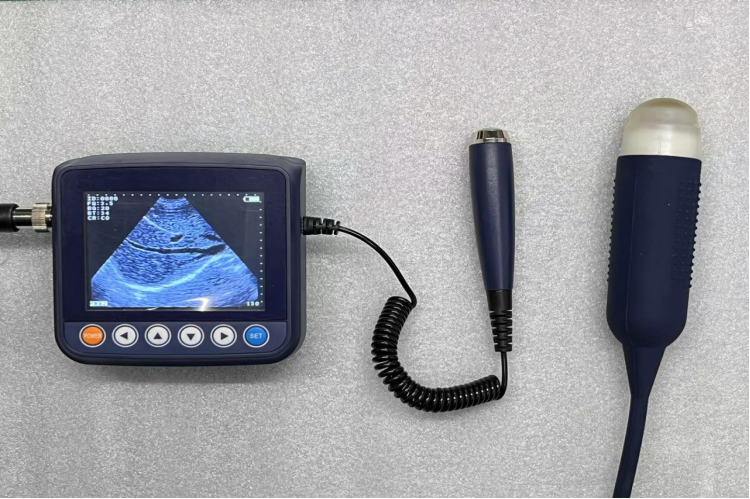

V9 Handheld Veterinary Ultrasound Diagnostic Instrument

WristScan V9 unique design, easy to carry, suitable for pet hospitals, animal breeding and breeding base, fast, simple and accurate animal early pregnancy diagnosis and gestational age identification, uterine and ovarian development detection and disease diagnosis. In addition, there are small animal liver, gallbladder, kidney and other organs of the focus of examination, back eye to determine.

Contact Us

Product Details

Support:

Product Features:

1. The use of full digital power imaging technology, image clarity

2. For pigs, horses, cattle, sheep, cats, dogs, built-in easy-to-use animal software

3. One of the smallest and lightest veterinary ultrasound instruments on the market, weighing only 340 grams (including batteries)

4. Lightweight and portable and can be placed on the forearm, giving the operator both hands with full freedom

5. Equipped with up to 4.5 hours of lithium battery, to meet the needs of your work

6. The host adopts a strong special shell, and the probe is dustproof and waterproof, and can be used under harsh conditions.

Specifications:

Wristscan V9 Technical Parameters:

Probe: 3.5 m hz mechanical fan scan (with waterproof function)
Display depth (mm):192
Detection depth (mm):≥ 140
Resolution (mm) lateral: ≤ 4 (depth ≤ 80), ≤ 5(80 <depth ≤ 130)
Resolution (mm) Axial: ≤ 2 (depth ≤ 80
Blind area (mm):≤ 8
Geometric position accuracy (%) horizontal: ≤ 20
Geometric position accuracy (%) Longitudinal: ≤ 10
Monitor size (inches):3.5 tft-lcd
Display mode: b, m
Image grayscale: 256 level
Image storage: 127 frames
Measurement function: distance, heart rate, slope, time, gestational age (pig, horse, cow, sheep, cat, dog)
Character Display: Medical Record No.
Battery capacity: 1550m ah
Host power consumption: 7W
Adapter power consumption: 45 va
Volume: 171mm x 93mm x 62mm
Weight: 340g (including battery)
