SW-1600

With ARM chip architecture, the operating system is stable and reliable, advanced processing technology provides high-quality images, and different races preset specific algorithms, different departments preset parameter conditions, generate standard diagnostic reports, clinical work is simple and efficient.

Technical Parameters

• Identification using a variety of array element probe 80/96/128
• Native Image Storage ·>360
• Postural mark
• >97 species
• Hospital Standard Single Page Report
• Rechargeable potassium ion battery standby about 3/5/8h
• VGA interface/USB2.0 interface/RS232 interface

High-Performance Imaging Platform

Uses a 12-inch 1024*768 resolution high-definition led lcd screen with a one-key optimization function to ensure the quality of the image. And can be external usb storage, single image storage time is about <9 seconds.

Powerful Working Platform

Has different race measurement formulas, which can be used for gestational week monitoring (bpd, gscrl, fl, hc, ac, edd, afi) and prediction of expected date of delivery, fetal weight, and non-menstrual period, etc., to fully meet the measurement needs.

Comprehensive Clinical Solutions

Including abdominal, heart, urology, gynecology, obstetrics, small organs, blood vessels, musculoskeletal department software package, and preset department conditions, suitable for a variety of medical environment.

Overview
Notebook digital ultrasonic diagnostic instrument (hereinafter referred to as the instrument) by the host, 3.5 m hz convex array probe, power adapter. Optional 7.5 m hz high-frequency linear array probe, 6.5 m hz cavity probe, 6.5 m hz micro-convex probe. According to the configuration is divided into two types: SW-1600, SW-2200V. SW-2200V model b ultrasonic instrument operation panel adopts standard computer keyboard, and the input process is simple and convenient. Laser engraved backlight keys, beautiful atmosphere.
The instrument adopts ARM chip architecture to provide a stable and concise operating system. Including B, B + B, B + M, M, 4B imaging modes; The gray scale of the image is 256; image smoothing/sharpening, tissue harmonics, gamma correction, intelligent 8-segment TGC control, histogram, pseudo-color processing and up and down, left and right, brightness, focus number, focus spacing, focus position, dynamic range, scanning angle, frame correlation, M speed adjustment; with date, clock, name, age, gender, doctor, hospital name, image annotation and other functions and abdominal, heart, urology, gynecology, obstetrics, small organs, blood vessels, musculoskeletal and other multi-department software package; with different race measurement formula, it can measure distance, circumference, area, volume, heart rate, monitoring gestational week (BPD, GS, CRL, FL, HC, AC, EDD, AFI), expected date of delivery, fetal weight display prediction, last menstruation prediction, etc. Can realize multi-language interface: Chinese, English, German, French, Spanish, Portuguese, Russian, Persian, Arabic, etc;
Scope of Application
Mainly used in the heart, abdomen, urology, obstetrics and gynecology, pediatrics, musculoskeletal ultrasound examination.

Main Functions
1. Operating system: ARM chip architecture, stable, simple and powerful
2. Display: 12 inch 1024*768 resolution HD LED LCD screen
3. Display mode: B, B + B, B + M, M, 4B
Probe array element: the host can automatically identify and use a variety of array element probes (80 array elements. 96 array elements. 128 array elements)
4. Image preset: This machine combines a large number of clinical experience, and has different preset adjustment conditions for different parts or organs examined by different departments and has a key optimization function.
5. Movie playback: ≥ 256 frames
6. Image storage: ≥ 360. External USB storage, single storage image time ≤ about 9 seconds (storage speed is related to the USB device used)
7. Scanning angle adjustment: adjustable
8. Image magnification: separate knob depth adjustment (≥ about 20 levels adjustable)
9. Puncture: with puncture guide line, angle and position adjustable
10. Focus: the focus position is adjustable, the focus position is adjusted by 5 levels
11. Image adjustment: up and down, left and right, brightness, focus position, dynamic range, scanning angle, frame correlation, M speed
12. Image processing: image smoothing/sharpening, tissue harmonics, gamma correction, pseudo-color.
13. Annotations and characters: date, clock, name, age, gender, doctor, hospital name, image annotation
14. Body position markers: ≥ 97
15. Measurement function
a) Regular measurement: distance, perimeter, area and volume;
B) Cardiac measurement: left atrium, right atrium, left ventricle, right ventricle, aorta, descending aorta and aortic isthmus;
c) Obstetric measurements: gestational sac, biparietal diameter, head circumference, abdominal circumference, femur length, fibula length, head-to-hip diameter, yolk sac, abdomen, brain size, last menstruation, amniotic fluid, gestational age, expected date of delivery, fetal weight, etc;
d) Gynecological measurement: uterine body, cervix, endometrial thickness, ovary, follicle;
e) Urological measurements: kidney, adrenal gland, prostate, testicular mass, epididymis, etc;
f) Pediatric measurement: common hepatic duct, common bile duct, pancreas, spleen, kidney, adrenal gland, etc;
g) Measurement of small organs: thyroid, seminal vesicle, testis, scrotum, breast mass, skin mass, etc. with different race measurement formulas
16. Report function: hospital standard report page settings, can enter patients, doctors, diagnostic results and other information, automatically import the selected diagnostic pictures and inspection measurement data
17. External interface: VGA interface, dual USB2.0 interface, RS232 interface, dual probe interface
18. Power saving mode: the panel key light can be a key switch, the instrument does not use automatic power-off for 6 minutes, press any key to resume operation
19. Language settings: Chinese, English, French, Spanish, Portuguese, Russian, etc
20. One-click generation of standard report pages.

Performance Index

Monitor: 12.1 inch 1024*768 resolution HD LED LCD screen
Grayscale: 256 level
Continuous working time: ≥ 8 hours
Battery standby time: ≥ 2 hours, ≥ 5 hours
Host weight: about 3.5kg
Overall dimensions of the main engine: 316 × 314 × 69 (length × width × height)(mm³)

SW-1600 Notebook black-and-white ultrasound and single-chip microcomputer B ultrasound parameters comparison

1: This machine adopts 12 inch 1024*768 resolution HD LED LCD screen. SCM 12 inch 800 * 600LED LCD screen. This machine in the image resolution, clarity will improve a lot.

2: This machine uses 32-channel signal processing, which is richer and clearer than the images of most 16-channel products currently on the market. And the probe is added with a high pressure chip so that the probe does not generate heat, no noise, and the image is more delicate. So there is a corresponding increase in cost.

3: This machine adopts ARM chip architecture to provide stable and powerful operating system. Its system functions are basically equivalent to PC instruments, but it is very stable and much less expensive than PC solutions. SCM products, storage is very small, unable to achieve many functions.

4: This machine has multiple departments software package: abdomen. The heart. Urinary. Gynecology. Obstetrics. Small organs. Blood vessels. Musculoskeletal, etc. In addition, a large number of clinical experiences are integrated with preset adjustment conditions for the parts examined by different departments, which can be optimized with one key, and the examination operation of clinicians is more simple. There is only one setting for all departments and parts of the microcontroller, which is troublesome to adjust during the diagnosis process, and the inspection items carried out are relatively too few!

5: This machine has rich measurement functions: in addition to regular distance, perimeter, area, volume, heart rate, gestational week (BPD, GS, CRL, FL, HC, AC, EDD, AFI), expected date of delivery and fetal weight. For the prediction of the last menstruation, there are 44 measurement softwares for single obstetrics, and professional measurement softwares for clinical departments such as abdomen, obstetrics, superficial, pediatrics, heart, small organs, etc. Single chip microcomputer has only several measurement formulas, and there is no choice of departments and organs.

6: With different race measurement formula.
Customers can select a standard obstetric algorithm based on local population or state to make the diagnosis more accurate. At present, there is only one algorithm for single chip microcomputer on the market, and the diagnosis results will have a large deviation.

7: The scanning angle of this machine is adjustable, but the single-chip microcomputer cannot.

8: This machine uses large-scale high-end chip, low power consumption, not easy to heat, stability is improved accordingly. With the same battery, this machine has a longer standby time than the microcontroller.

9: This machine has organized harmonic function, single chip microcomputer does not.

10: This machine with ultrasound workstation report page, using the hospital standard report page settings, can be entered into the hospital. The patient. Doctor. Diagnostic results and other information, storage images 1-4, automatic import inspection measurement data. Single chip microcomputer only a simple measurement data sheet, can not add information pictures, etc.

11: The machine can be external USB storage, a single storage image time 9 seconds to complete. Built-in can store about 360 pictures or reports. Single-chip storage image time to wait about 50 seconds, built-in storage of about 128 pictures.

12: Chinese and English interface, the machine can be written in multiple languages: German, French, Spanish, Portuguese, Russian, Turkish, Arabic, etc. There are already: Chinese, English, French, Spanish, and Portuguese and Russian are being perfected. SCM only in English.

Note: The above highlighted marks are the differences between the two instruments, and other functions are basically covered by this machine.

SW-1600 Full Digital Notebook Ultrasonic Diagnostic Product Recommendation

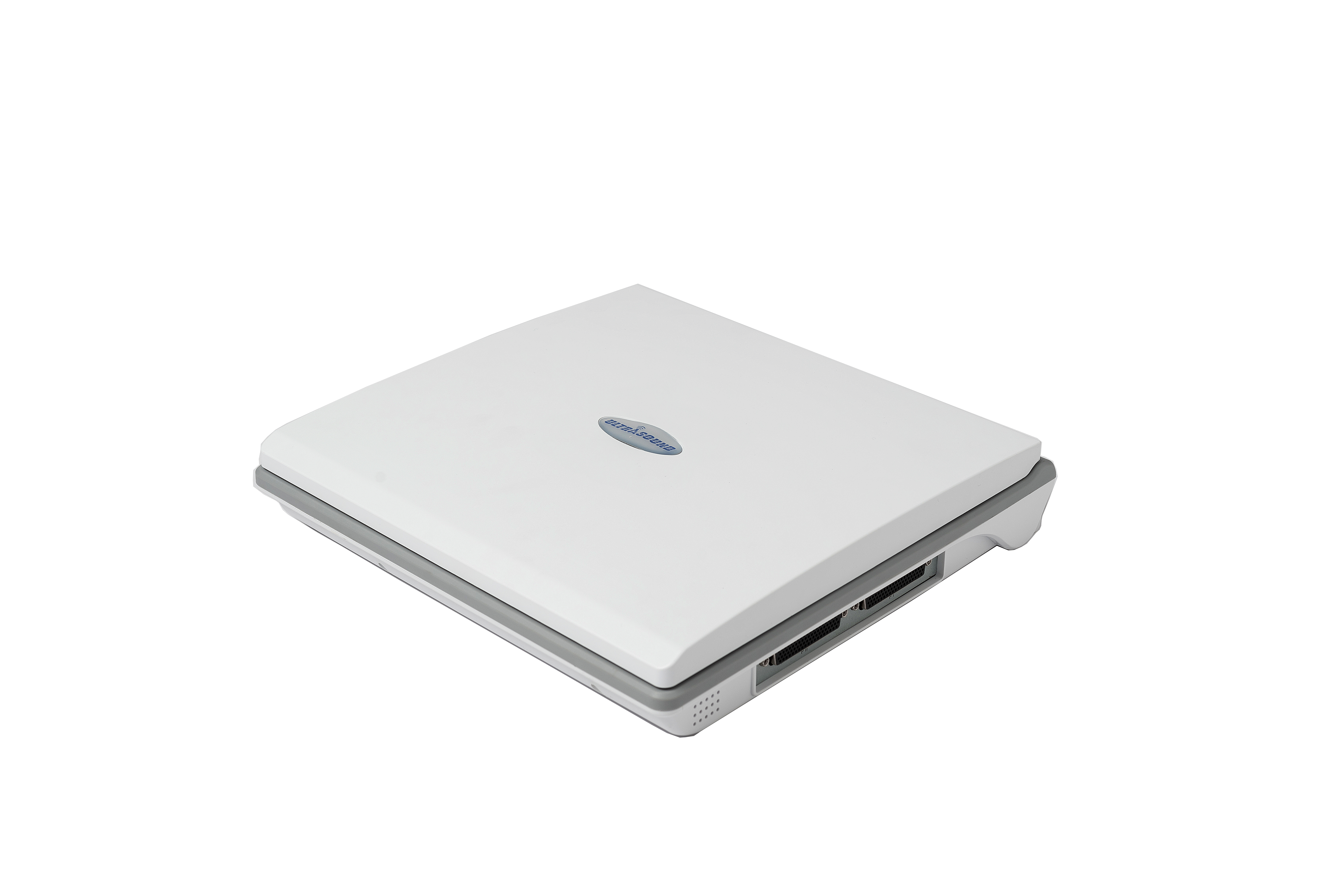

Appearance drawing of the host (this drawing is a schematic diagram. The specific appearance shall be subject to the actual object)

Lightweight, portable, stable and powerful

1, 12 inch 1024*768 high resolution HD LED LCD screen.

2, Built-in large capacity lithium battery> 4 hours super battery life.

3, Double probe socket, has a wide range of probe adaptation capabilities.

4, ARM chip architecture, the function is more stable, powerful, 32-channel signal processing, the image is more clear.

5, Built-in multiple languages: chinese, english, french, spanish, portuguese, russian, etc.

6, For different species using standard organs and department software, so that the results are more accurate.

7. Built-in standard editable and illustrated ultrasound report page.

SpecialConditional Comprehensive Programme

Has different race measurement formula, in addition to regular measurement (distance, perimeter, area, volume), including heart, urinary, gynecology, obstetrics, small organs, blood vessels, musculoskeletal and other multi-department software packages. Gestational week monitoring (bpd, gs, crl, fl, hc, ac, edd, afi) and expected date of delivery, fetal weight, last menstruation prediction, etc.

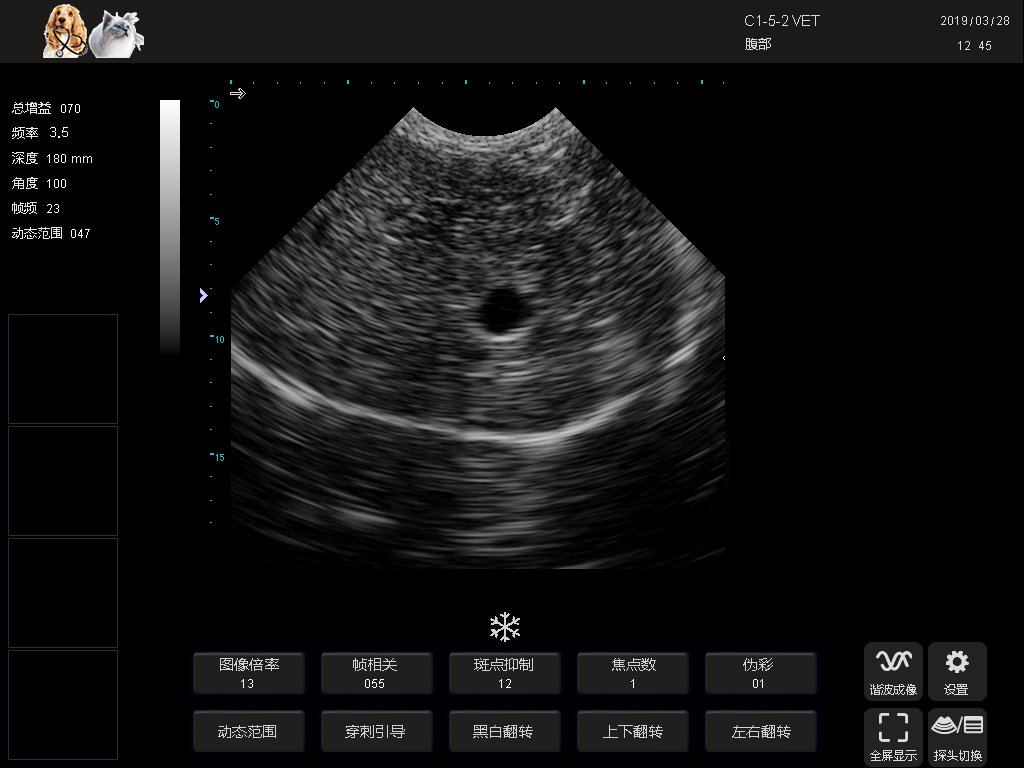

Advanced Imaging Technology

Contains tissue harmonic imaging, strong penetrating power, providing more real, clear and accurate diagnostic images.

Built-In Hospital Standard Reports

Perfect Probe Family

Based on a stable operating system and efficient processing technology, with the abdomen, obstetrics and gynecology, heart, urology, superficial tissue and small organs, cavity and puncture interventional ultrasound and other rich application capabilities, and easy to move, long standby time, the same type of products in the cost-effective.

Notebook full digital ultrasonic diagnostic apparatus-clinical preferred!
