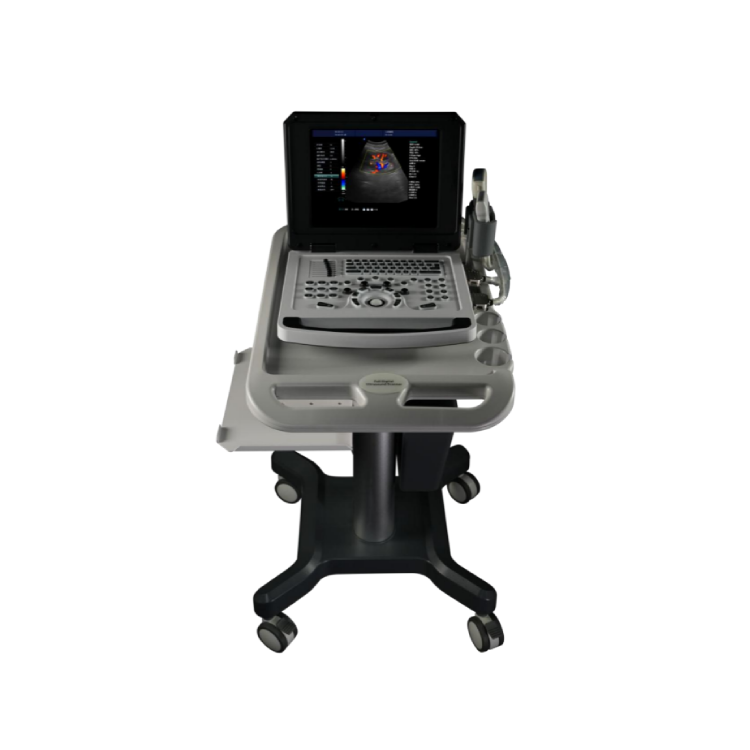

SW-500
The system is clear and powerful, and can be used for abdominal, gynecological, small organ, vascular, urology, prostate, intracavitary, surgical, cardiac and pediatric examinations.
Product Parameters
|
No. |
Project |
Index |
|
< 1> |
Depth |
≥ 300mm |
|
<2> |
Lateral Resolution |
≤ 1mm (Depth≤ 80mm) ≤ 2mm (80 <Depth≤ 130mm) |
|
<3> |
Axial Resolution |
≤ 1mm (Depth≤ 80mm) ≤ 2mm (80 <Depth≤ 130mm) |
|
<4> |
Blind Area |
≤ 5mm |
|
<5> |
Geometry Position Accuracy |
Level ≤ 10% Vertical ≤ 10% |
|
<6> |
Language |
English/Chinese |
|
<7> |
Channel |
32 |
|
<8> |
Display |
12” LCD |
|
<9> |
External Display |
PAL, VGA |
|
<10> |
Grayscale |
256 levels |
|
< 11> |
Voltage |
AC220V ± 10% |
|
< 12> |
Operating System |
Windows 7 |
|
< 13> |
Scan Mode |
B, B/B, 4B, B /M, M, B +C, B +D, B +C+D, PDI, CF, PW |
|
< 14> |
Probed |
Probe Socket: 2 Probe Frequency: 2.0MHz ~ 10.0MHz,8-step frequency conversion |
|
< 15> |
Color Flow Image | Doppler frequency, sample frame position and size, baseline, color gain, deflection angle, wall filtering, accumulation times, etc. |
|
< 16> |
Signal Processing |
With dynamic filtering and quadrature Demodulation With total gain adjustment Gain adjustment: 8 segment tgc B- type, c- type and d-type can be adjusted separately B/w image gain and color flow gain can be adjusted separately |
|
< 17> |
Doppler |
Doppler baseline adjustment level 6 Pulse Repetition Frequency Adjustable Alone: cfm pwd with D linear speed regulation |
|
< 18> |
Digital Beamforming |
Digital Beamforming Images Images Dynamic tracking of the entire image Image Receive delay Supports half-step scanning and ± 10 ° linear receive deflection angle Multi-beam Parallel Processing Technology |
|
< 19> |
Basic measurement and calculation functions |
Mode b: distance, angle, perimeter and area, volume, stenosis rate, histogram, cross section M mode: heart rate, time, distance and speed Doppler measurements: time, heart rate, speed, acceleration |
|
< 20> |
Gynecological measurement and calculation functions |
Uterus, left ovary, right ovary, left follicle, right follicle, etc |
|
< 21> |
Obstetric measurement and calculation functions | G.A, EDD, BPD-FW, FL, AC, HC CRL, AD, GS, LMP,HL,LV,OFD |
|
< 22> |
Urinary measurement and calculation function | Left kidney, right kidney, bladder, residual urine volume, prostate, prostate specific antigen predictive value ppsa, prostate specific antigen density psad, etc. |
|
< 23> |
Product Size | 348 × 330 × 70mm |
|
< 24> |
Carton Specifications | 425 × 390 × 215mm |
|
< 25> |
N.W./ G.W. | 5kg/ 6kg |
Standard Configuration:
A host
A convex array sample
A linear array sample
A probe holder
One power adapter
Optional Example
| Probed |
3.5MHz R50 Convex Probe |
7.5MHz L40 Linear Probe |
3.5MHz R20 Micro-Convex Probe |
6.5MHz R10 Transvaginal Probe |
|
Picture |
|
|
|
|
| Elements |
80 |
80 |
80 |
80 |
| Scan Width |
R50 |
L40 |
R20 |
R10 |
| Frequency |
2.0MHz~5.5MHz |
4.0MHz~10MHz |
2.0MHz~5.5MHz |
4.0MHz~10MHz |
| Display Depth | Adjustable | Adjustable | Adjustable | Adjustable |
| Scanning Depth (mm) |
≧ 180 |
≧ 60 |
≧ 140 |
≧ 60 |
| Lateral Resolution |
≦ 3 (Depth ≦ 80) ≦ 4(80 <Depth≦ 130) |
≦ 2 (Depth ≦ 40) |
≦ 3 (Depth ≦ 80) |
≦ 2 (Depth ≦ 40) |
| Axial Resolution |
≦ 2 (Depth ≦ 80) ≦ 3(80 <Depth≦ 130) |
≦ 1 (Depth ≦ 60) |
≦ 2 (Depth ≦ 80) |
≦ 1 (Depth ≦ 60) |
|
Blind Area (mm) |
≦ 4 |
≦ 3 |
≦ 4 |
≦ 4 |
|
Geometric Position (%) level |
≦ 5 |
≦ 5 |
≦ 5 |
≦ 5 |
|
Geometric Position (%) Vertical |
≦ 5 |
≦ 5 |
≦ 5 |
≦ 5 |
